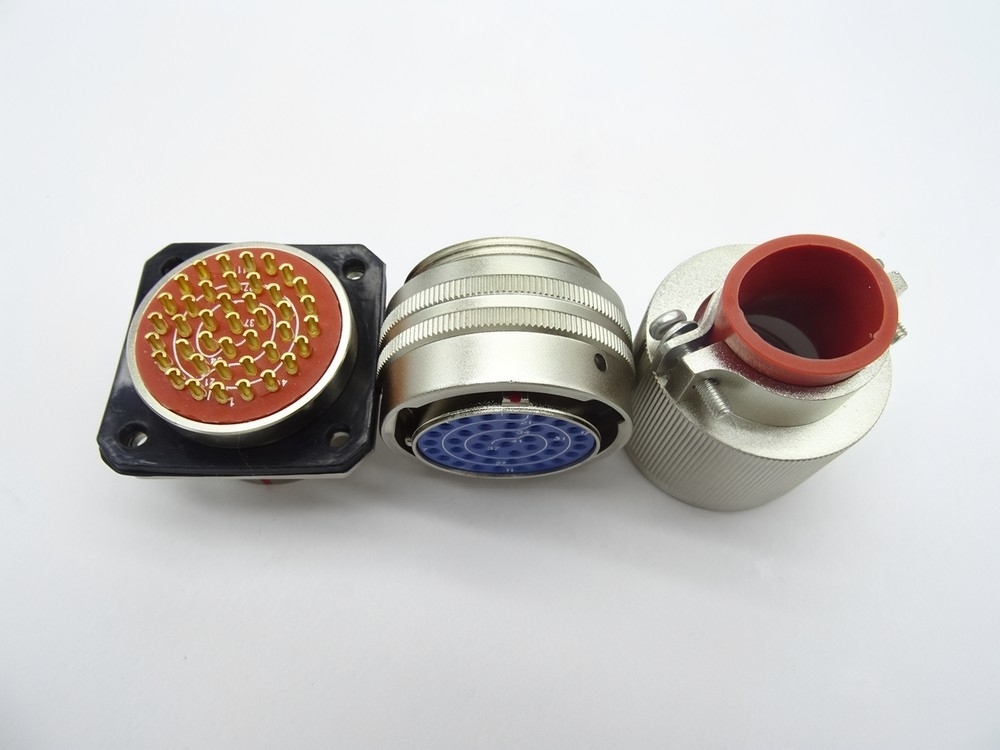

Y50X series circular electrical connector ,Y50X-2041TK | Y50X-2041ZJ10

Introduction

The Y50X series circular electrical connectors represent a pinnacle of engineering excellence designed for mission-critical applications where signal integrity, durability, and environmental resilience are non-negotiable. These connectors incorporate MIL-DTL-38999-inspired design principles while integrating modern advancements for superior performance in, defense systems, and heavy machinery applications. With their robust construction and precision engineering, Y50X connectors ensure uninterrupted power and data transmission even under extreme operating conditions.

Core Technical Features

1. Advanced Environmental Sealing

• Rated IP68/IP69K for complete protection against dust ingress and high-pressure water jets
• Operates reliably in temperature ranges from -55°C to +175°C
• Resistant to UV radiation, chemicals, and fuels per MIL-STD-810H standards

2. **High 40A and voltage rating to 600V AC/DC

• Gold-plated copper alloy contacts ensuring <5mΩ contact resistance
• EMI/RFI shielding effectiveness >100dB at 1GHz
• Signal integrity maintained up to 10Gbps data transmission

3. Mechanical Robustness

• Corrosion-resistant stainless steel coupling mechanism
• 360° continuous shielding with conductive elastomer seals
• Vibration resistance to 20G (5Hz-2kHz) and shock tolerance to 100G
• Mating cycle exceeding 5,000 connections

Configuration Flexibility

| Feature | Specification Range | Contact Positions | 3 to 48 pins | | Shell Sizes | 14 to 36 standard sizes | | Termination Types| Solder, crimp, or PCB mount | | Keying Options | 12 positions (anti-mismat) | | Cable Entry | Straight/right-angle variants|

Industry-Specific Applications

• Defense Systems
  Sealed connectors for ground vehicles factors

• Industrial Robotics
  Vibration-resistant connections for robotic arms operating in manufacturing cells

• Energy Infrastructure
  Submersible connectors for offshore wind turbine control systems

• Transportation
  High-current power distribution in electric/hybrid vehicle charging systems

• Medical Imaging
  EMI-shielded connectors for MRI and CT scan equipment

Competitive Advantages

• Field-Provable Reliability
  Backed by 100% automated production testing and accelerated life cycle validation
• Rapid Deployment
  Tool-less mating system reduces installation time by 40% compared to threaded alternatives
• Custom Engineering Support
  In-house design team for application-specific modifications (custom pinouts, hybrid signal/power configurations)
• Global Compliance
  Certified to UL 1977, CSA 22.2, RoHS 3, and REACH standards

Conclusion

The Y50X series delivers uncompromising performance where connectivity failures are not an option. By combining military-grade durability with cutting-edge signal transmission capabilities, these connectors solve critical connectivity challenges in extreme environments. For technical datasheets, application notes, or customized solution consultations, contact our engineering team to discuss how Y50X connectors can enhance your system reliability.
